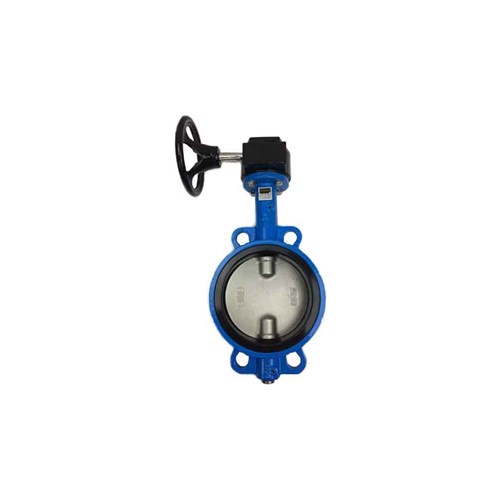

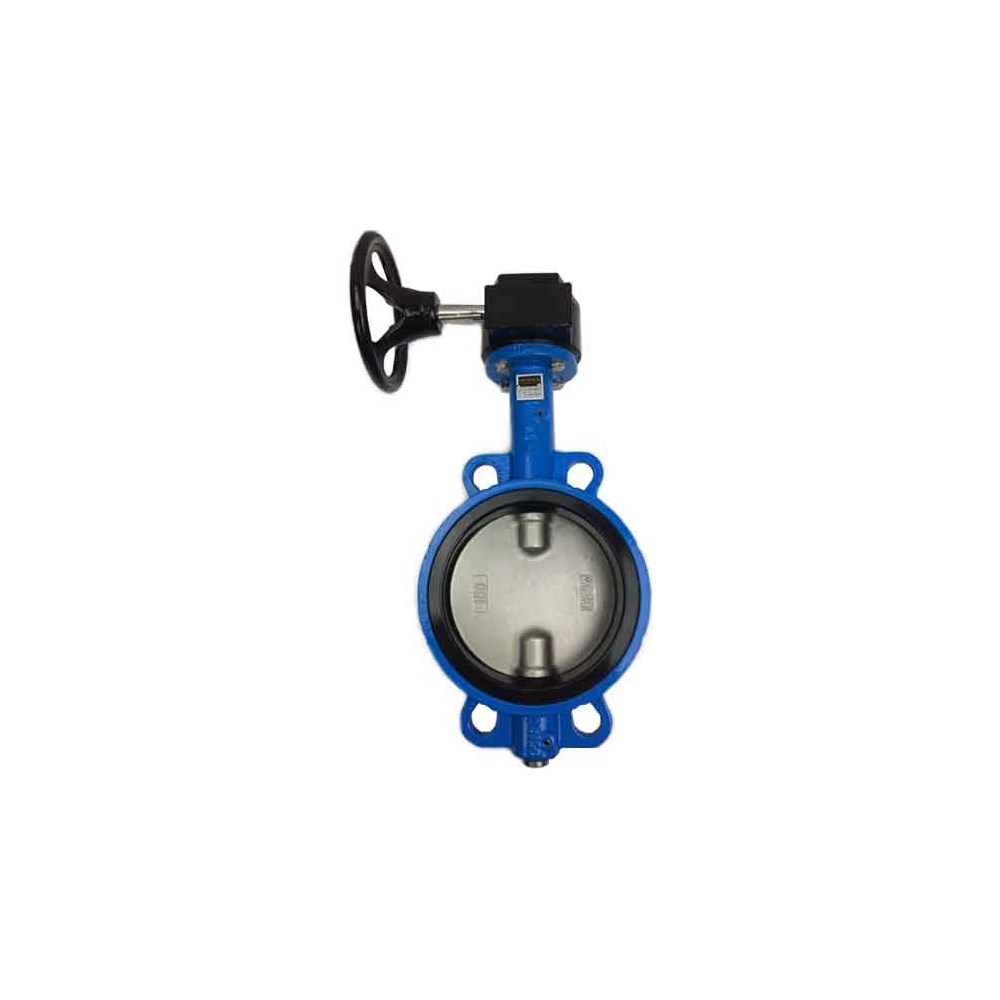

CAST IRON BUTTERFLY VALVE - WAFER x Gear Operated, Buna seals

Product Code: CIVBFWF

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal
  • Wafer design allows the body to slip between 2 flanges
  • Quick installation
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • NBR seals
  • Stainless steel grade 316 disc
  • Low operating torque
  • Straight through flow
  • Gear Operator
Applications include:
  • Water pipelines
  • Petroleum
  • Chemical
  • Refineries
  • Pulp and paper
  • Power plants
Technical Specifications
End Connection 1 Wafer
Brand MAXIMUS
Keywords Wafer Butterfly - Gear Operated
Disc Material Stainless Steel - Grade 316
Material Cast Iron
Operator Type Gear Operator
Seal Material NBR
Temperature Degree C -40C to +100C
Working Pressure PSI 235
