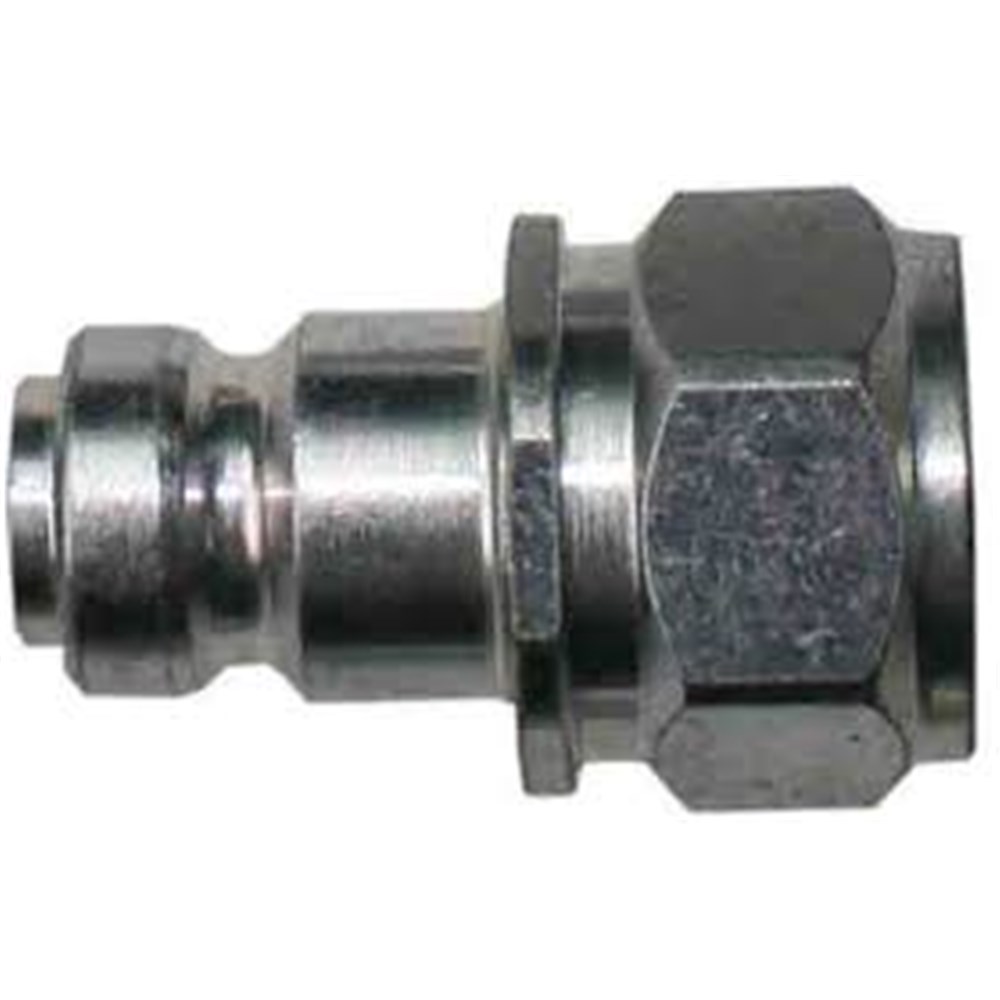

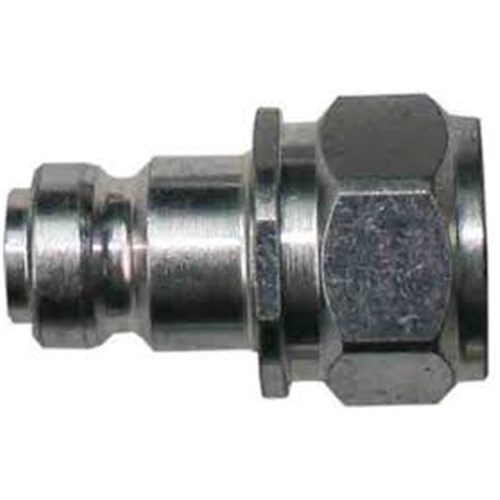

316 STAINLESS STEEL QUICK COUPLER - CEJN 116 Plug Flat Face x BSPP Female

Product Code: QCHSS-C116PFF

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description
CEJN Series 116 hydraulic quick disconnect couplings for ultra high working pressures are a flat face non-drip design eliminating leaks when connecting or disconnecting couplings
  • Flat face
  • Hardened 316 stainless steel plug
  • Non-drip on connection and disconnection
  • BSPP female threads
  • Working pressure 21750 psi (150 Mpa)
  • Temperature range -30 to 100 degree C
  • Flow rate of 6.0 LPM
Applications:
  • Ultra high pressures
  • Bolt tensioning
  • Bearing pullers
  • Test benches
  • Hydraulic cylinders
Technical Specifications
End Connection 1 Coupler Plug
End Connection 2 BSPP Female
Brand CEJN
Coupler Valve Type Double Shut-off
Keywords CEJN 116 Flat Face
Flow Rate - LPM 6.0
Material Stainless Steel - Grade 316
Temperature Degree C -30C to +100C
Working Pressure PSI 21750
