DANCHEM SG COMPOSITE CHEMICAL HOSE - 1400 Kpa, BS EN 13765 Type 3

Product Code: CHDC3051

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description

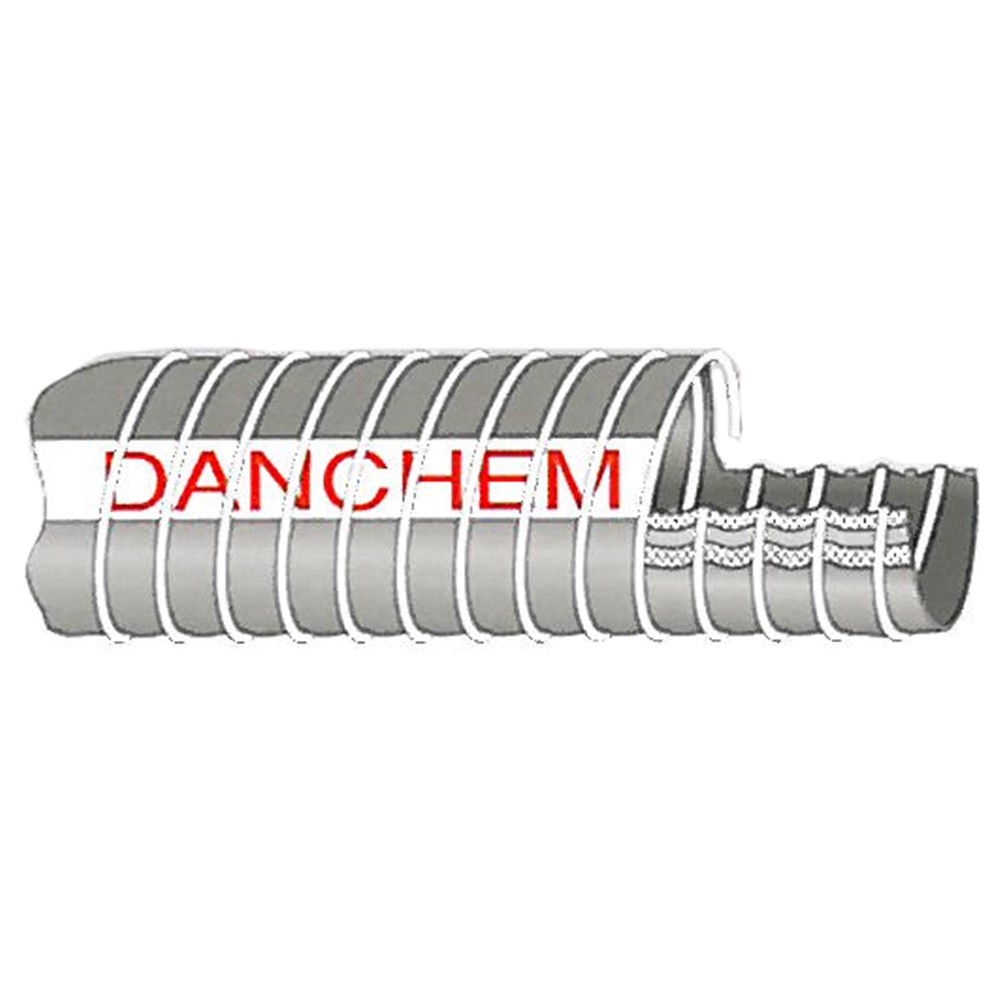

The Danchem range of composite hoses is manufactured from multiple layers of polypropylene fabrics and films. The inner wire helix is available in 316 stainless steel and polypropylene coated steel. The outer wire helix is available in 316 stainless steel and galvanised steel.

The hose is typically manufactured with a PVC coated cover; however, PU coated cover and Polypropylene chemical resistant covers are available on request.

Hose is available in Standard Duty and Heavy Duty.

Standard duty is used in applications such as plant transfers, road tanker use and rail tanker unloading.

Heavy duty version is available for ship to shore and marine applications.

Standards Conformed

BS EN 13765: 2018
SIZES 1″ TO 4″ STANDARD DUTY / 4″ TO 10″ HEAVY DUTY

Heavy Duty Hoses:
INTERNATIONAL MARITIME ORGANISATION IBC CODE (FOR MARINE APPLICATIONS)
UNITED STATES COASTGUARD REQUIREMENTS (FOR MARINE APPLICATIONS)
Features
STANDARD DUTY: 1” – 4” (25MM – 100MM)

HEAVY DUTY: 4” – 10” (100MM – 250MM)

TEMPERATURE RANGE
: -30°C TO + 100°C

MAXIMUM WORKING PRESSURE
: 14 BAR* *10″ = 15 BAR

VACUUM RANGE
: 0.9 BAR

Technical Specifications
Brand DANTEC
Keywords Chemical

Documents
