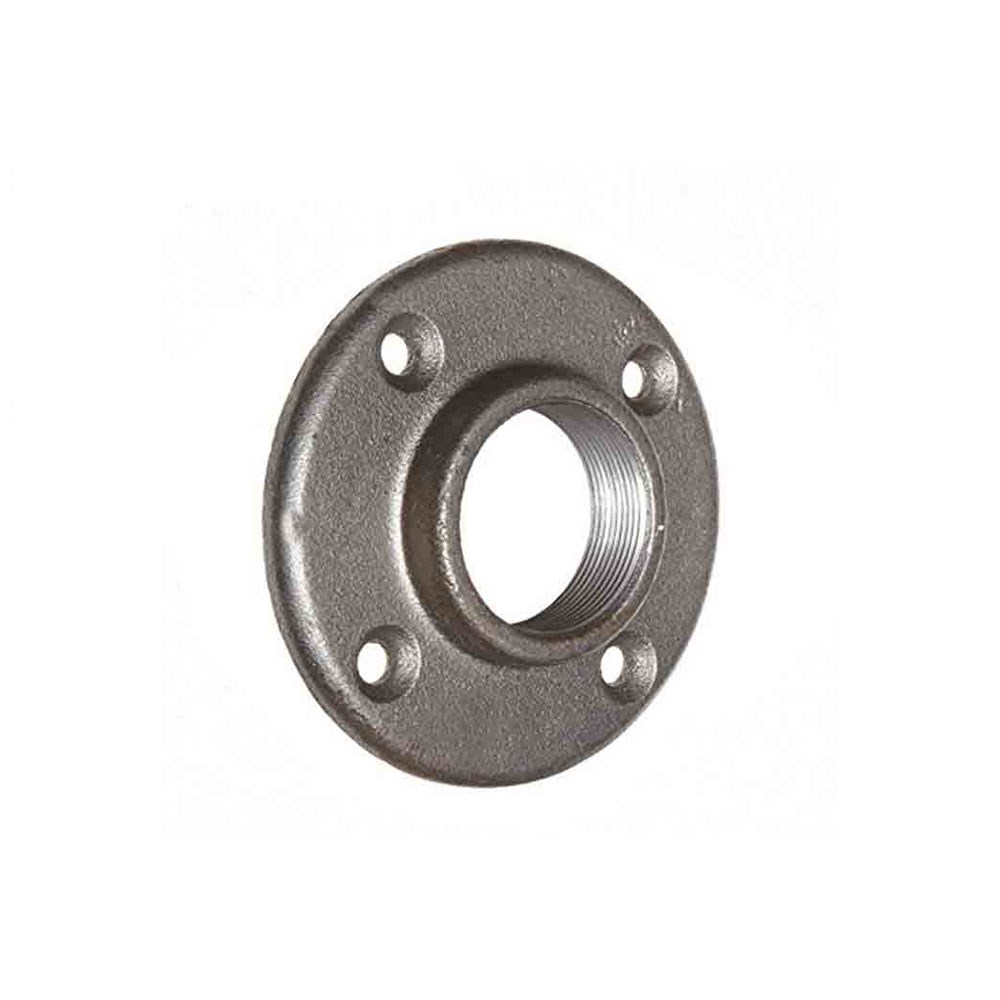

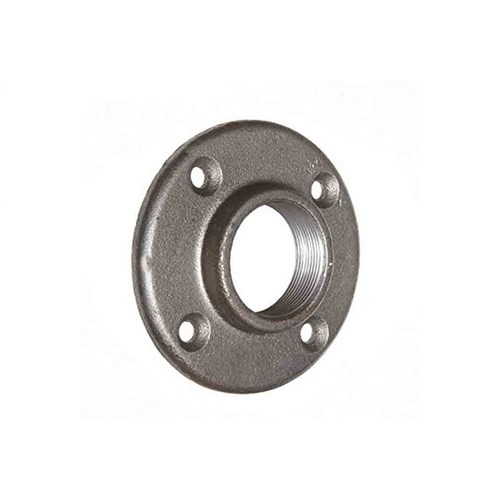

GALVANISED IRON FLANGE - TABLE D threaded BSP Female

Product Code: GFD

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description

These malleable iron fittings are used in multiple applications where low to medium pressures are used to transfer water, steam, gas and air.

  • Malleable Iron material conforms to ASTM A197 and ASTM A47
  • Dimensions conform to EN 10242
  • Galvanised surface finish
  • Economical
  • Large range of sizes
  • BSP threads to ISO 7.1
  • Working pressure when used with water is 200 psi @ 3:1 safety factor
  • Working pressure when used with air, gas and steam is 150 psi @ 3:1 safety factor

Applications include:

  • Steam lines
  • Air lines
  • Irrigation
  • Gas
Technical Specifications
Brand BAT
Keywords Gal Flange
