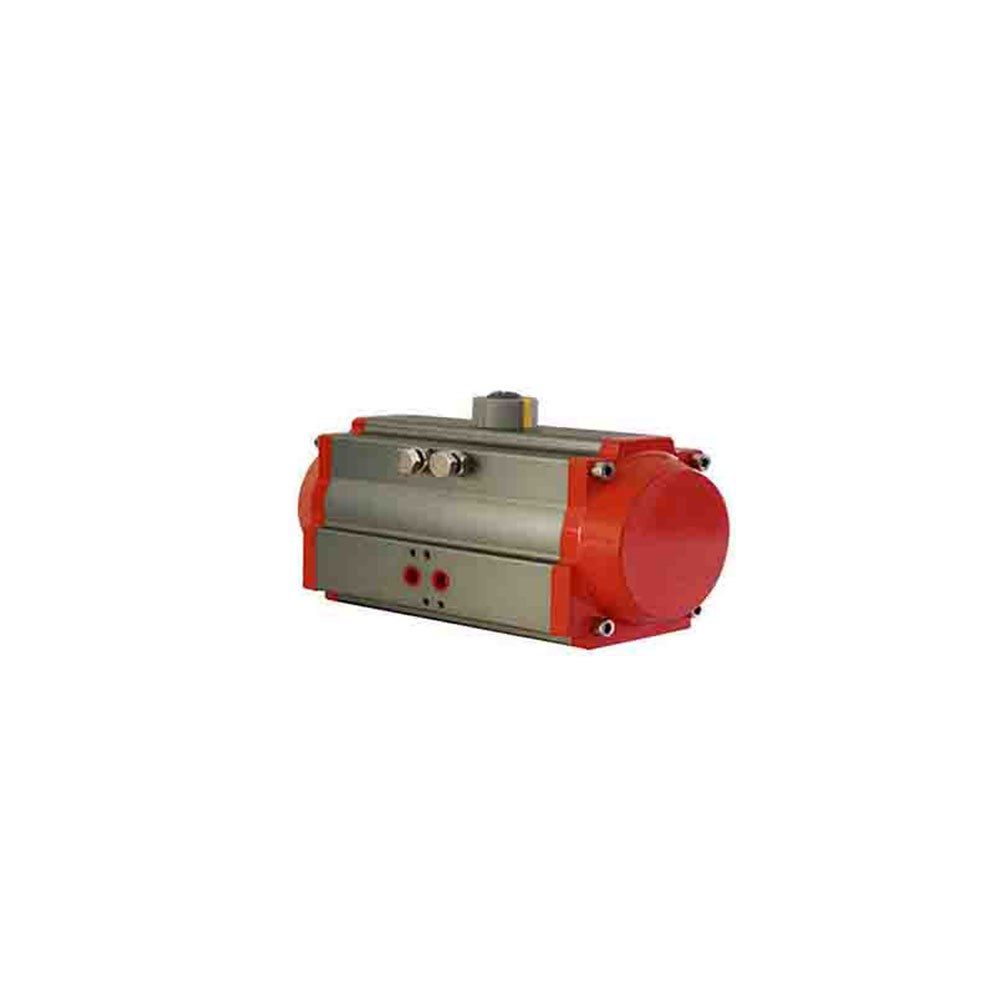

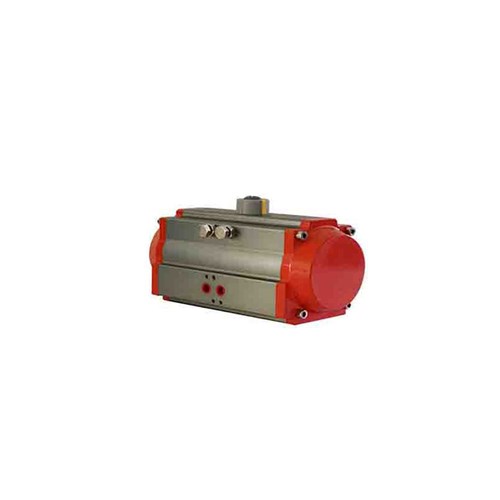

Aluminium Pneumatic Actuator - Double Acting, ISO 5211 Pad

Product Code: VAAAD-1

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description
There are multiple options available to transfer a pressurised force into either a rotary or a linear motion, these air operated actuators utilise a piston under pressure to move a rack and pinion to create the movement when attached to such items as valves.

The single acting spring return version is considered the fail safe option, if the air supply should fail then the actuator will return to the closed position and prevent loss of media being transferred. The double acting version is used where air pressure is required to open and close the valve to control the direction of flow.
  • Aluminium body and pistons hard anodised to extend the operating life
  • ISO 5211 mounting pad
  • NAMUR multifunction visual indicator on valve top
  • Anti blow-out pinion
  • Stroke adjustable by 2 independant bolts on the end caps
  • Twin rack and pinion
  • NBR seals
  • Low friction internal bearings and guides
  • Working medium, dry or lubricated air or inert gas as long as the medium is compatible with the internal components and lubricant
  • Solenoid valves, limit switches and external positioners available
Applications include:
  • Any product with ISO 5211 mounting pad
  • Ball valves
  • Butterfly valves
  • Knifegate valves
  • Water distribution pipework
  • Process control lines
Technical Specifications
Brand BAT
Keywords Actuator - Pneumatic
Application Actuation
Approval ISO 5211
Inlet Port BSPP Female
Material Aluminium
Seal Material NBR
Temperature Degree C -5C to +85C
Working Pressure PSI 116
