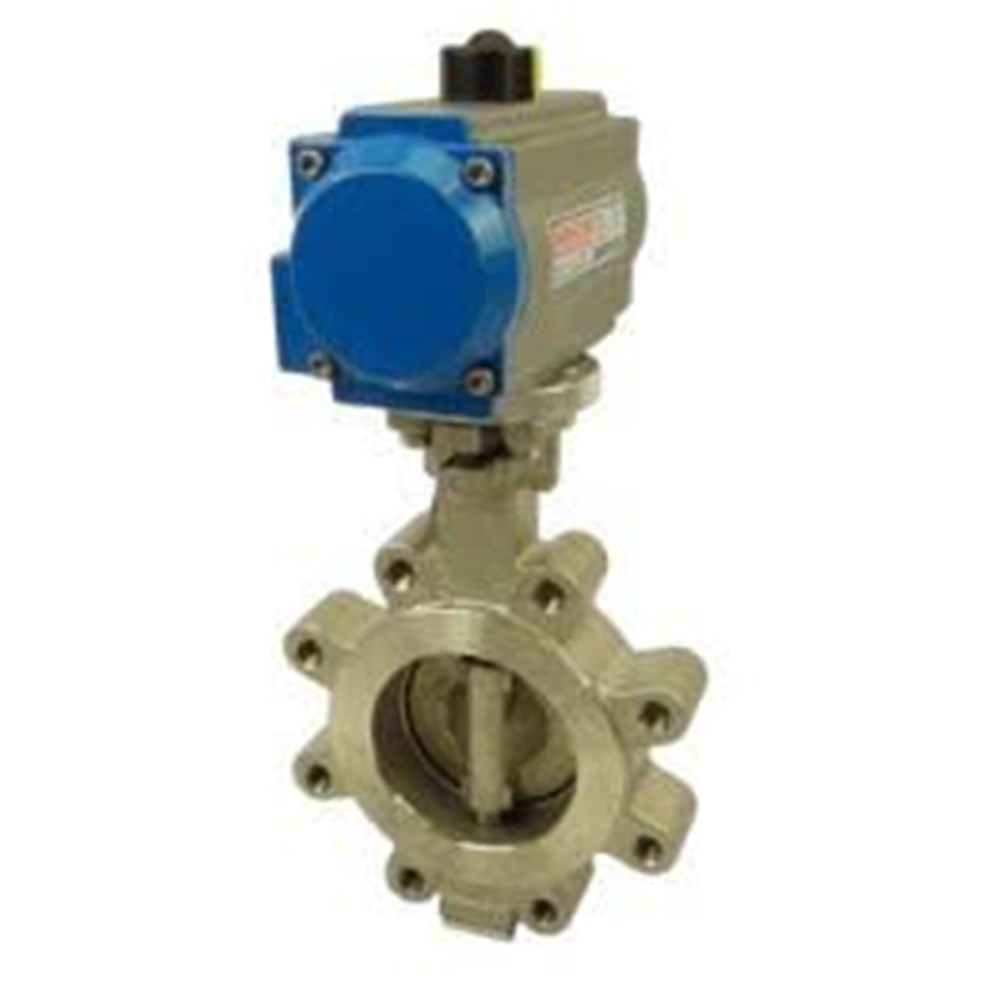

STAINLESS STEEL 316 BUTTERFLY VALVE - LUGGED x Pneumatic Actuated - Double Acting, PTFE

Product Code: SSVBFLPAD

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal

This range is Pneumatically actuated with either double acting (DA) or spring return (SR) operation, can also be provided with Electric Actuators and soleniod valves to automate the processing function of the valve
  • Pneumatic actuated, Double Acting operation
  • Stainless steel 316 body - PTFE lined
  • Lugged design with threaded lugs around the body to allow attachment of valve to flange
  • Quick installation
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • Stainless steel disc
  • Low operating torque
  • Straight through flow
Applications include:
  • Water pipelines
  • Petroleum
  • Chemical
  • Refineries
  • Pulp and paper
  • Power plants
Technical Specifications
Brand BAT
Keywords Lugged
Keywords Lugged Butterfly - Double Acting
Disc Material Stainless Steel - Grade 316
Material Stainless Steel - Grade 316
Operator Type Pneumatic Actuator DA
Seal Material PTFE
Temperature Degree C -5C to +85C
Working Pressure PSI 116
