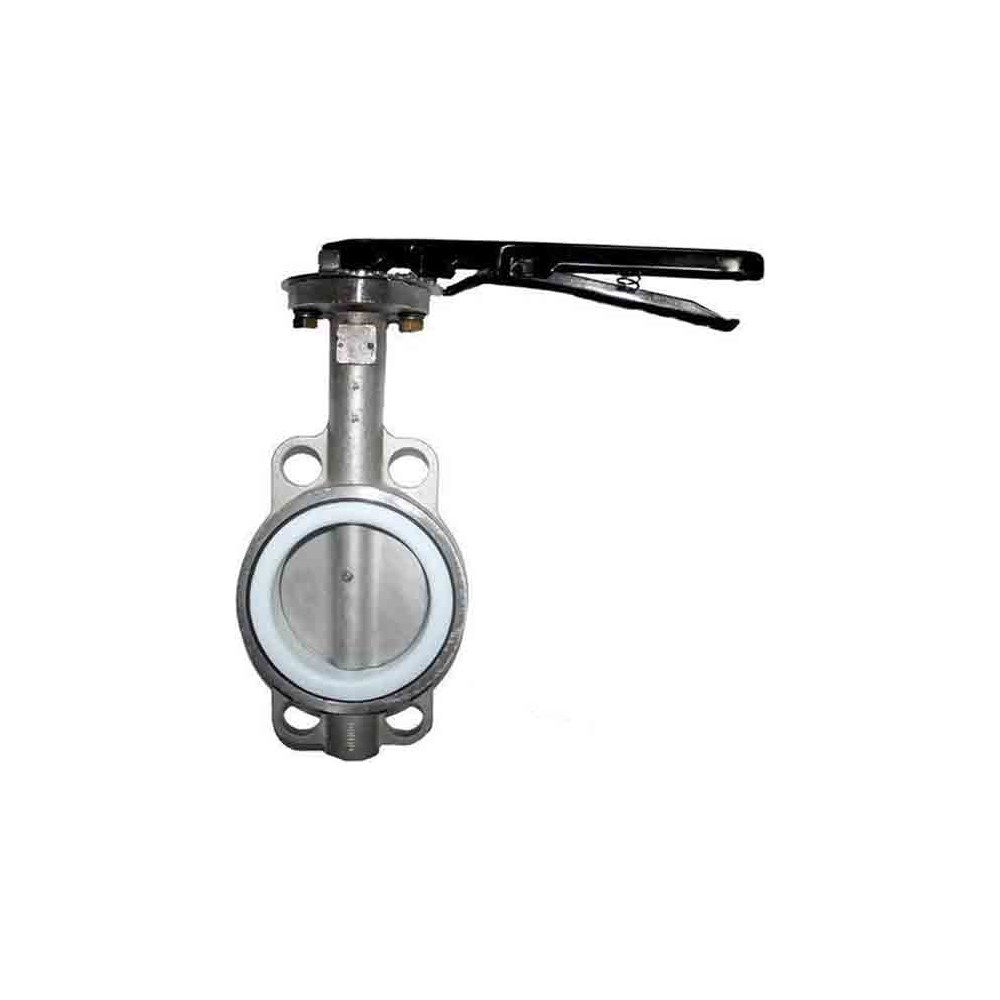

STAINLESS STEEL BUTTERFLY VALVE - WAFER x Lever Operated, PTFE lined

Product Code: SSVBFWP

RRP $0.00
inc GST
Increase value Decrease value
Quantity In Cart:
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal

  • Wafer design allows the body to slip between 2 flanges
  • Quick installation
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • PTFE lined seal
  • Stainless steel grade 316 body and disc
  • Low operating torque
  • Straight through flow
  • Lever Operated
Applications include:
  • Water pipelines
  • Petroleum
  • Chemical
  • Refineries
  • Pulp and paper
  • Power plants
Technical Specifications
End Connection 1 Wafer
Brand BAT
Keywords Wafer Butterfly - Lever Operator
Disc Material Stainless Steel - Grade 316
Material Stainless Steel - Grade 316
Seal Material PTFE
Temperature Degree C -30C to +200C
Working Pressure PSI 235
