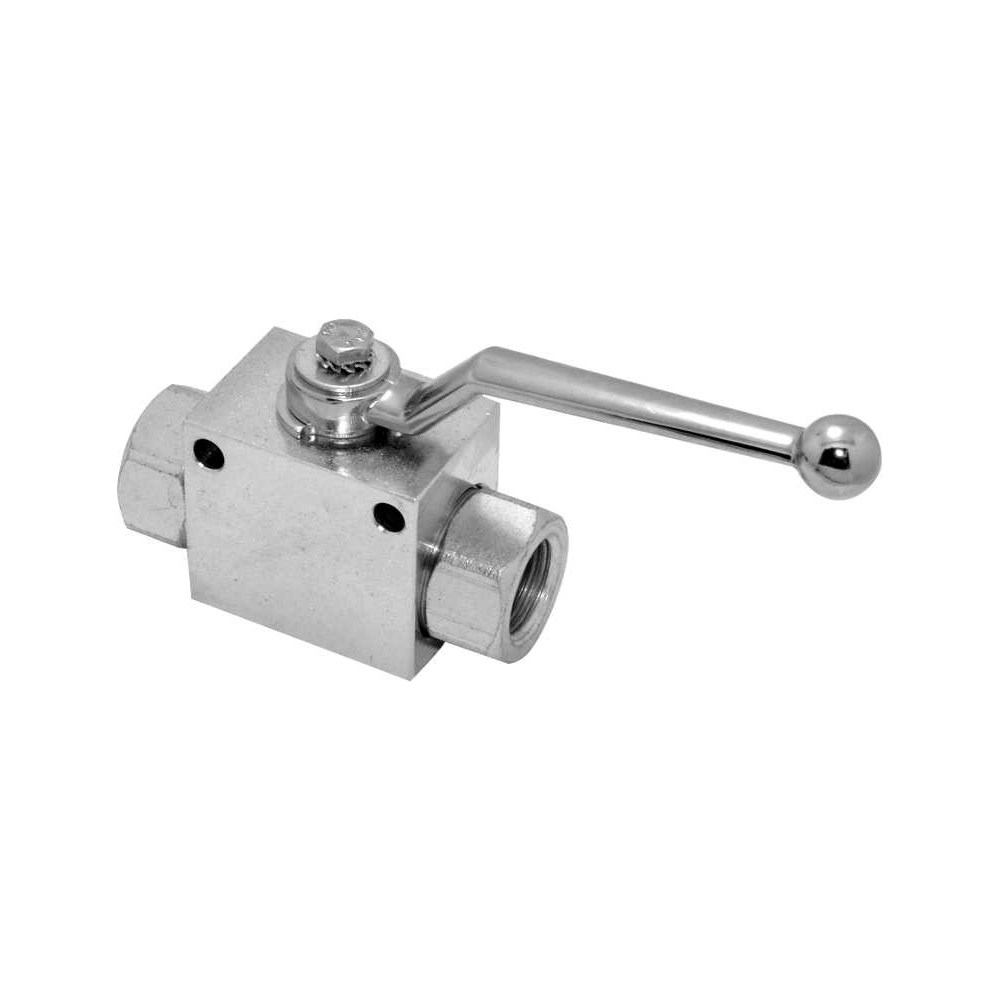

HYDRAULIC Ball Valve - BSP Female, ZP steel block body, steel handle, NBR seals

Product Code: HYVBS1L20

RRP $0.00
ex GST
Increase value Decrease value
  • Ball Valves are used to open or close flow.
  • The Valve is delivered in the open position, with the handle aligned with the longitudinal axis of the body, permitting flow through the valve body.
  • The Valve is closed, and flow is stopped when the handle is turned 90° clockwise from the open position when viewed from above.
  • Also suitable for suction and vacuum service.
  • Special ball seal design ensures seal at both low and high pressure.
  • Handle can be reoriented if required.
Technical Specifications
End Connection 1 BSP Female
Brand BAT
Keywords Ball Valve - High Pressure
Application Hydraulics
Material Steel - Plated
Seal Material NBR
Temperature Degree C -20C to +120C
